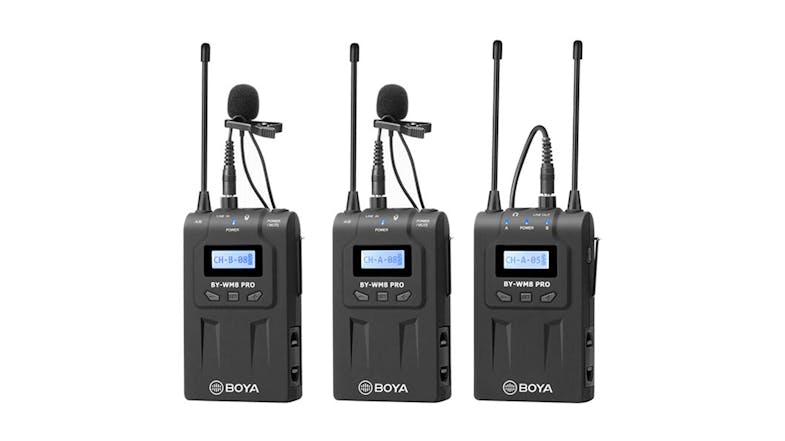

Boya UHF Dual-Channel Wireless Microphone System

Complete your recording setup with the Boya UHF Dual-Channel Wireless Microphone System. This bundle includes two transmitters, one receiver, a lavalier microphone, and a user-friendly interface, making it the perfect gear for recording various audio content. It also offers 48 UHF channels, selectable stereo and mono modes, a mute function, and impressive battery life.

Key Features

• Get premium quality recordings using this UHF Dual-Channel Wireless Microphone System
• Includes Two Transmitters and One Receiver
• Suitable for cameras and camcorders*
• Capture interviews, film dialog, field recording, broadcast TV, and news gathering
• Features 48 selectable UHF Channels,
• Delivers a broadcast-quality sound
• Selectable Stereo and Mono Mode Mute function
• LCD Displays
• Automatic LCD-locked Function
• Monitoring sound by headphone output (Receiver)
• Up to 100m (300’) operation range (without obstacle)
• 2 AA batteries for both transmitter and receiver
• System Oscillator type - PLL Synthesized Control Oscillator Carrier
• Frequency Range - 576.4 MHz to 599.9 MHz (Transmitter: A), 568.6 MHz to 592.1 MHz (Transmitter: B)
• Channels – 48
• Frequency response - 40 Hz to 18 kHz (+/-3dB)
• Operating temperature - 14° F to 122° F (-10℃ to +50℃)
• Storage temperature - 14° F to 131° F (-10℃ to +55℃)
• Transmitter RF output power - ≤10 mW
• Antenna - 1/4λ wire antenna
• Spurious emission - 250 nW or less
• Audio input connector - 3.5mm mini jack
• Reference audio input level - -60 dBV (MIC input, 0 dB attenuation)
• Reference deviation - ±5 kHz (-60 dBV, 1 kHz input)
• Input frequency range - 20 Hz to 20 kHz
• Distortion - 0.5% or less
• Power supply - Two AA-size batteries (transmitter)
• Operation time - About 6 hours (transmitter)
• Dimensions - 208 H x 67 W x 29 L mm
• Receiver Antenna - 1/4λ wire antenna
• Signal-to-noise ratio - 70 dB or more
• Headphone output level - 30mW (16 ohms)
• Audio output level - -60 dBV
• Power supply - Two AA-size batteries (receiver)
• Operation time - About 4 hours (receiver)
• Lavalier Microphone Transducer - Back electret Condenser
• Polar pattern - Omni-directional
• Frequency Range - 35Hz to 18 kHz
• Signal / Noise - 74dB
• SPL Sensitivity - -30dB +/-3dB / 0dB=1V/Pa, 1 kHz
• Connector - 3.5mm locking mini plug

*Boya UHF Dual-Channel Wireless Microphone System only. Other devices are sold separately.

**DISCLAIMER: Design, features, and specifications subject to change without notice. Some features in videos on the Internet may not be available on all models, please contact us for the TECHNICAL SPECIFICATIONS for a complete list of features by model. This feature list is for reference only, please contact us to verify features and functionality.
