Extol Cross Beam Self-Levelling Laser

MB8823306
Extol Cross Beam Self-Levelling Laser
Shortlist
Online Only
$113
Harvey Norman Customer Direct
  • Delivered by a trusted supplier
  • Leaves warehouse in 2-3 business days
  • Delivery can take up to 3 business days depending on location
  • Not available instore or for Click & Collect
Description

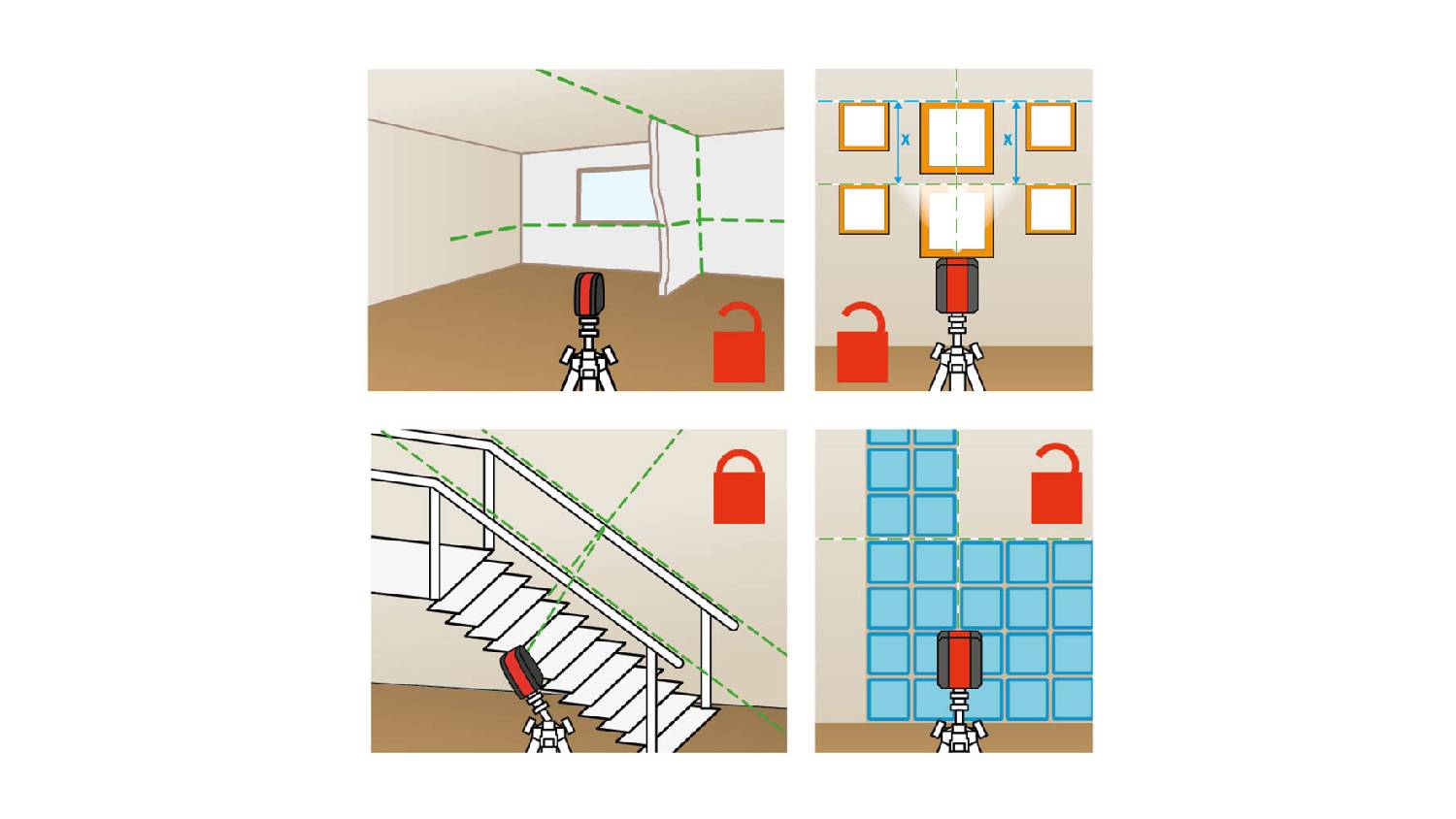

Efficiency and accuracy come together with the Extol Cross Beam Self-Levelling Laser. This advanced tool takes the guesswork out of levelling and alignment, allowing you to achieve perfectly straight lines with minimal effort. Whether you're hanging pictures, installing shelves, or aligning tiles, this self-levelling laser is your go-to companion.

Key Features

  • The self-levelling cross-line laser with a green beam is used for determining and verifying vertical and horizontal lines relative to the projected laser lines. This can be determined by utilising the automatic levelling function of the unit or by projecting laser lines at a required tilt angle.

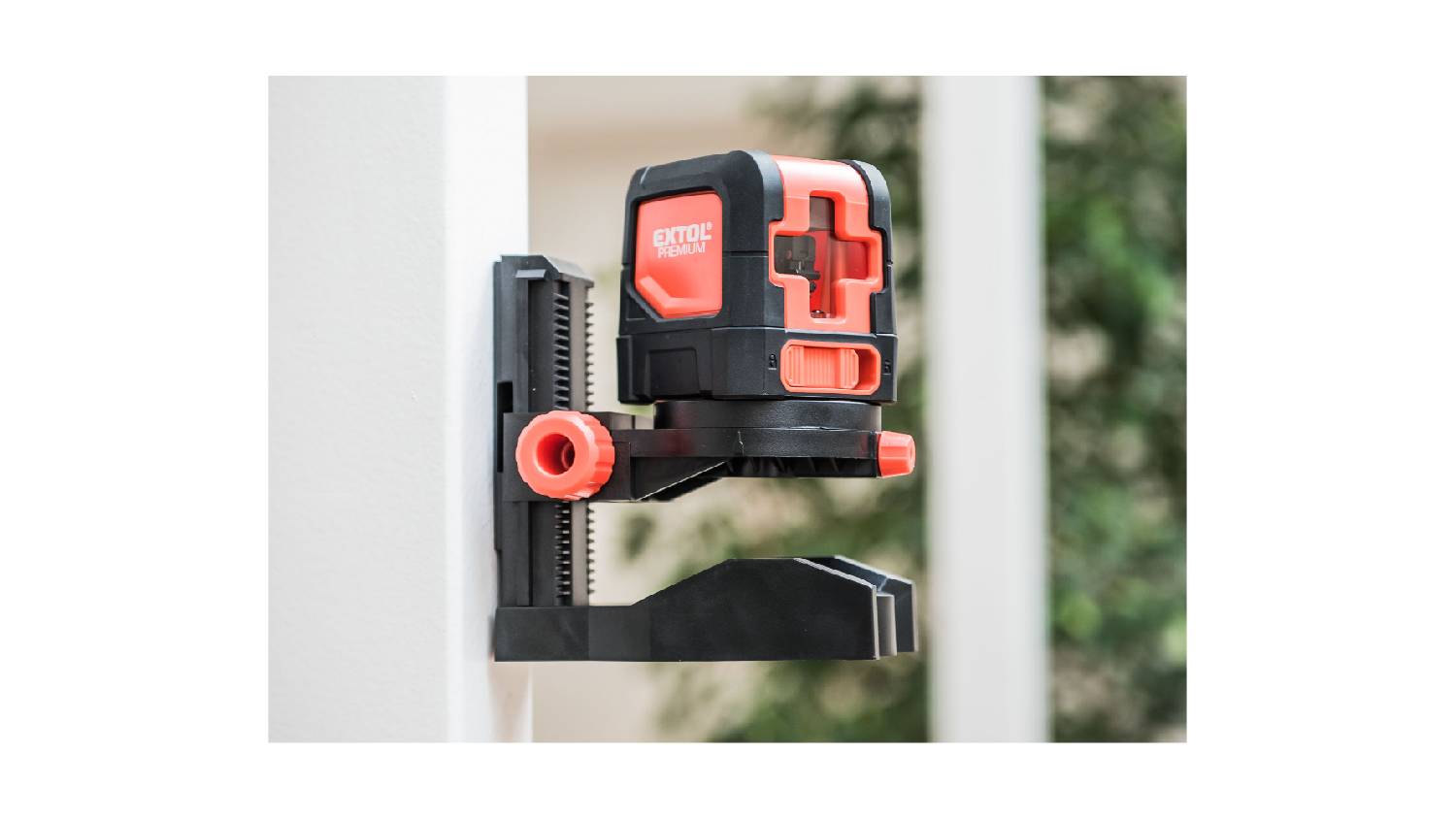

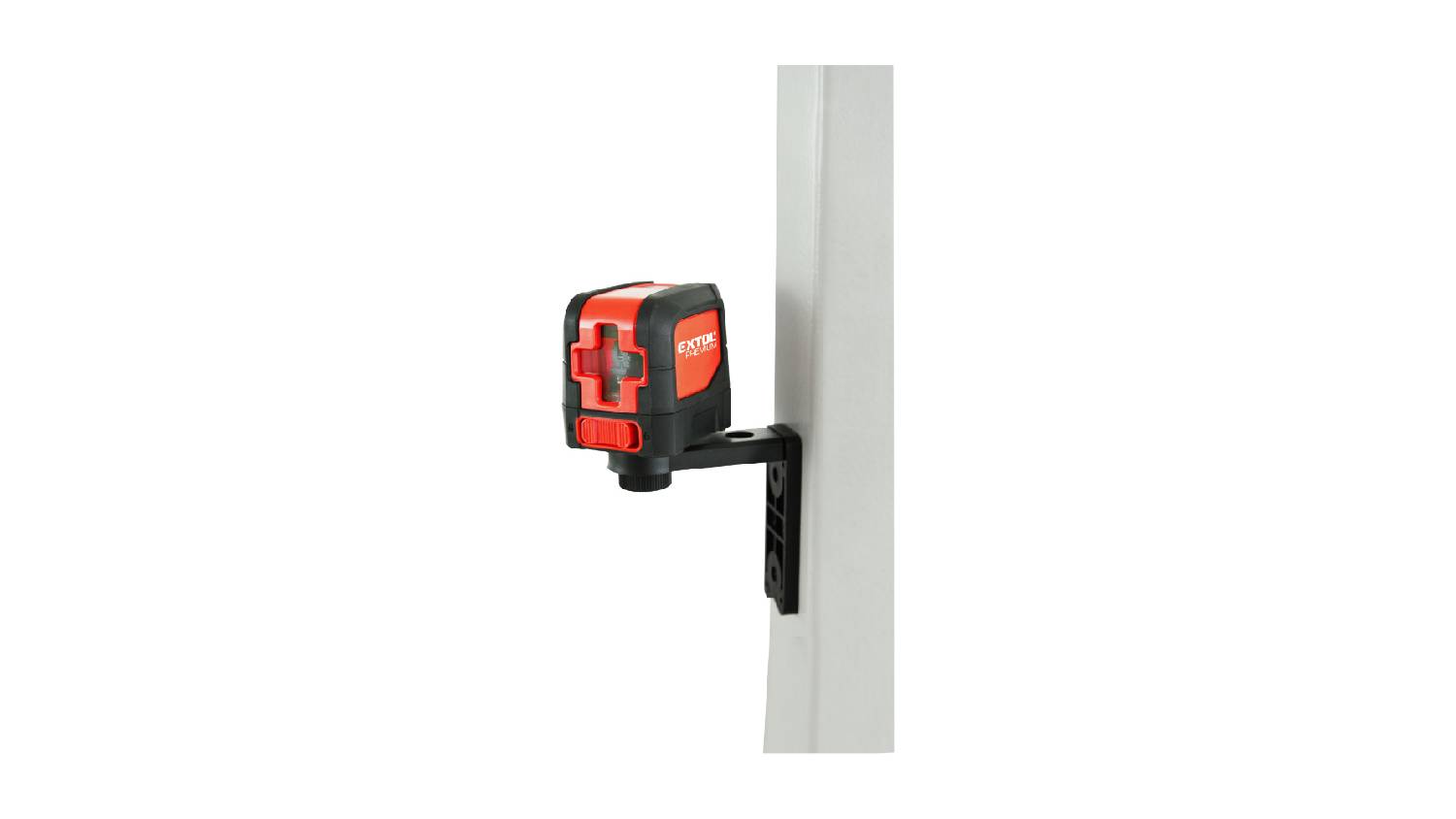

  • The device can be mounted to a tripod or to the supplied magnetic mounting bracket which can attach to a metal surface. A protective nylon case is provided for storage.
  • Laser beam 1H x 1V, Colour of the laser beam (Green), Class, wavelength, laser power 2, (510-535nm, < 1mW). Max. recommended measuring distance < (25m 2). Horizontal and vertical levelling accuracy (± 0.3 mm/m). Self-levelling time ≤ (5s), Thread for tripod attachment (1/4”). IP protection marking IP54.
  • Option for vertical line rotation in a range of (360°), Operating ambient temperature (-10 °C ~ + 45 °C). Planar span angle (horizontal/vertical beam > 130°).
  • Weight (without batteries) (214g). Power source batteries, type AA, 2 Ă— 1.5V (Supplied).
  • Dimensions (75mm Ă— 65mm Ă— 75mm).

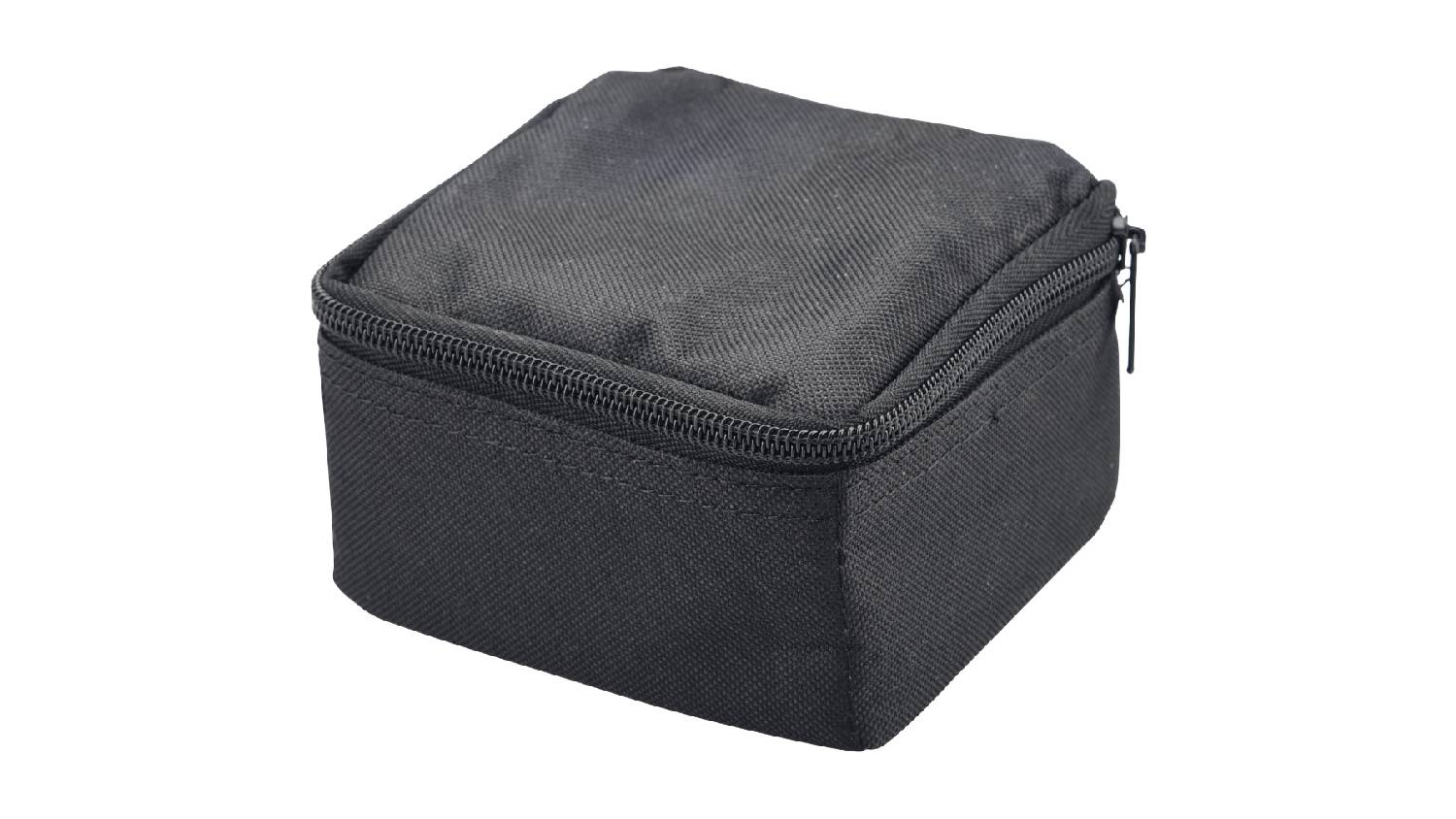

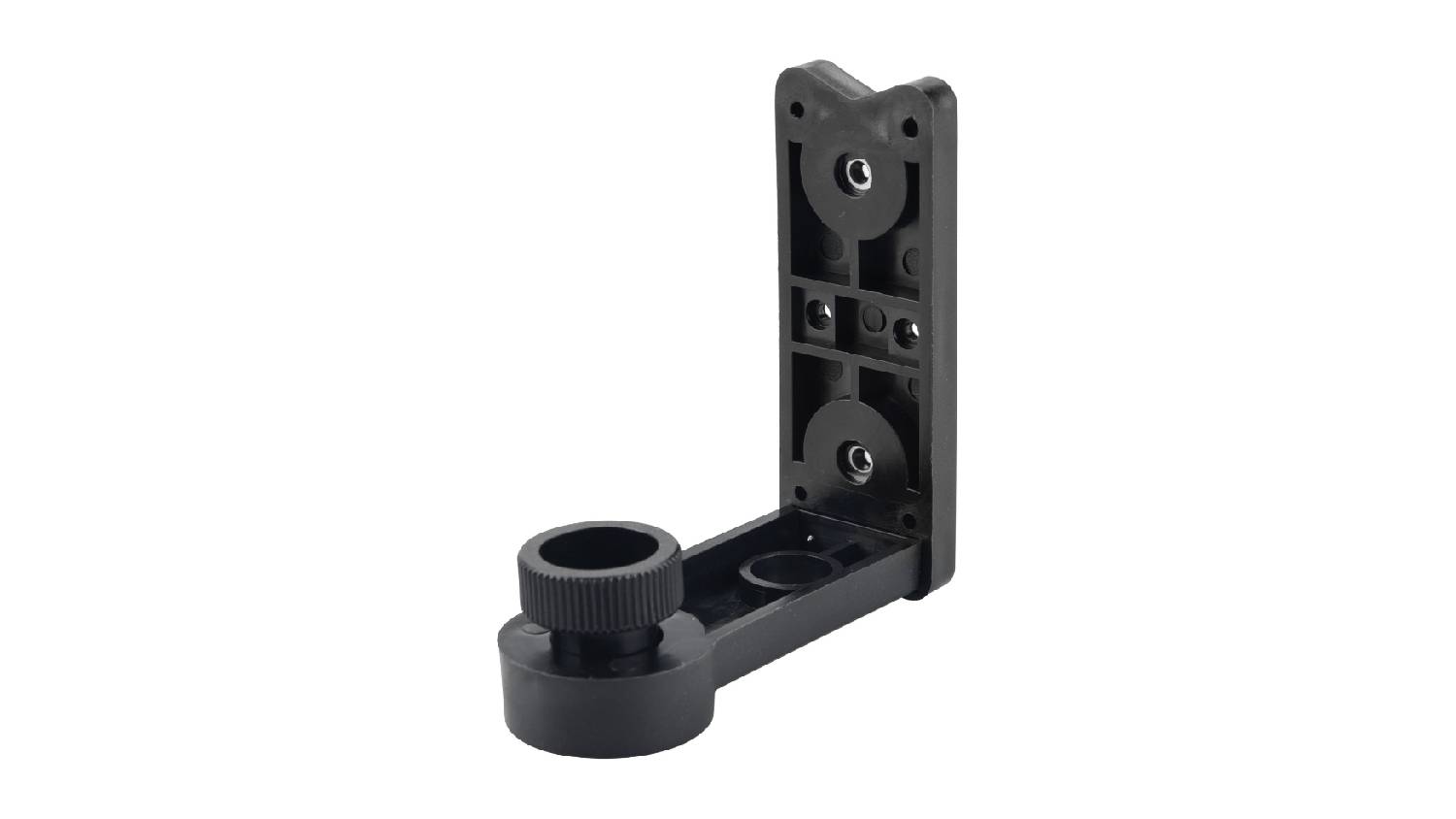

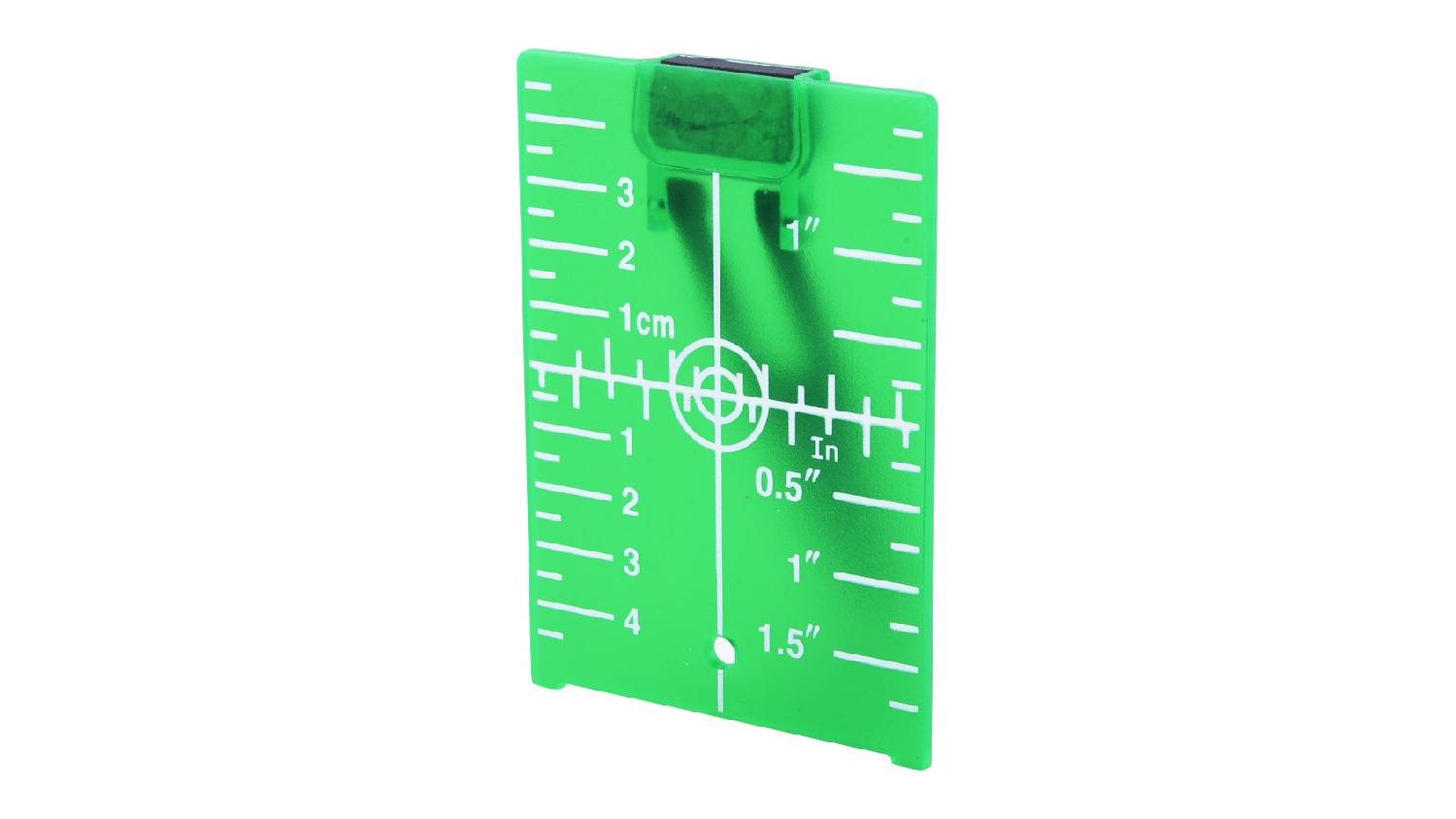

  • Supplied with Nylon case, Magnetic mounting bracket, and Target focus plate.

*Pollution level acc. to EN 61010-1 2 3.

Specifications
All Product Details
Brand Extol
Product Type Measuring Tools
Model Number MB8823306
Warranty
Manufacturers 24 Months
